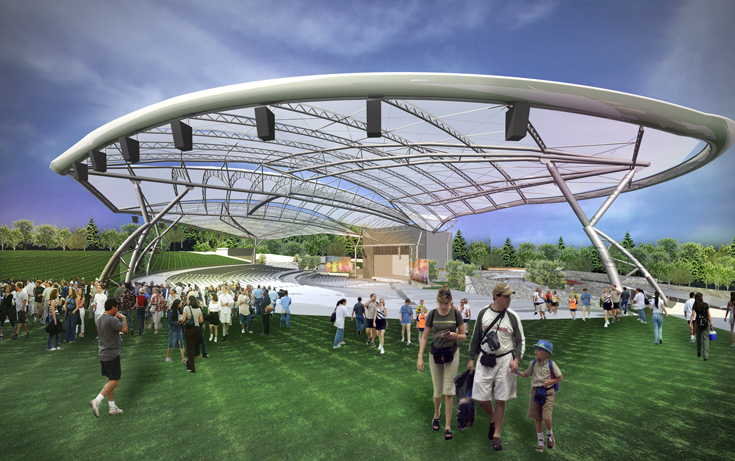

ASO/Encore Amphitheatre
Project Program Executive Summary
Site
AUTO PARKING: Mixture of paved and landscaped
Amphitheater parking stalls: 1,900 cars
Performing Arts Center parking stalls: 600 cars
Chamber of Commerce parking stalls: 200 cars (estimated)
TOTAL AUTO PARKING: 2,700 cars
OTHER SITE PARKING:
Number of Tour Buses: 8
Number of Loading Area Truck Bays: 6 – 8 (minimum)
VIP parking stalls: 350 cars
Orchestra dedicated parking stalls: 80 (in addition to 2,700 listed above)
Entrance Plazas
2 PLAZAS:
West Entry Plaza – Low elevation
East Entry Plaza – High elevation
AREA OF PLAZA: 26,000 – 30,000 square feet per each plaza
TICKET GATES: 6 each plaza
TICKET WINDOWS/WILL CALL: 6 total
CONCESSION WINDOWS: 94 total within 6 permanent buildings (both plazas)
60 additional at kiosks and portable concessions
TOILET FIXTURES: 100 women, 76 men
Equal division between plazas
Amphitheater
RAKE: 1:5 (to be reviewed during design based on specific site line studies)

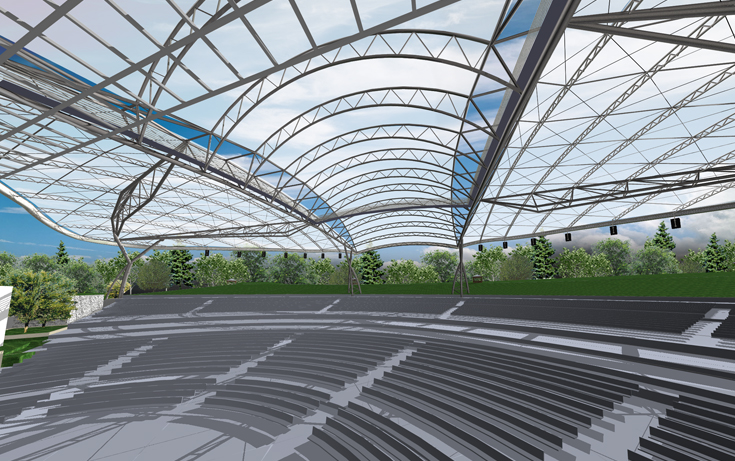

COVERED SEATING:
VIP Seating: Golden circle or orchestra level location
Seating type: 198 chairs with tables or 360 portable chairs in pit area
Box Seating: 50 4-seat boxes (expandable to 8 seats)
General Seating – Table and Orchestra: 4,200 Seats
General Seating – Stadium Chairs: 2,500 Seats
TOTAL COVERED SEATING: 7,000 Seats
LAWN SEATING (UNCOVERED):
Total seating based on 12 SF/person: 5,000 Seats (Approximate)
